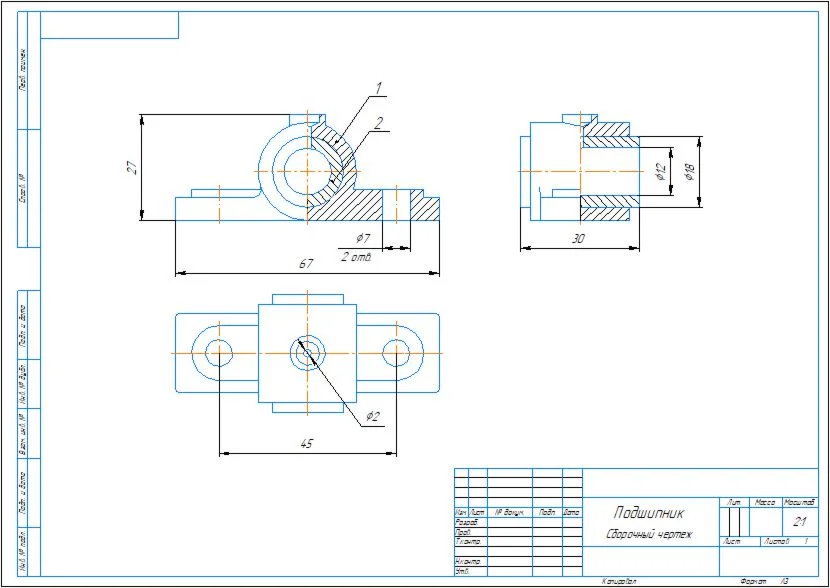

Assembly drawing and 3D models of the assembly, parts of the "Bearing" unit in the Kompas 3D program.

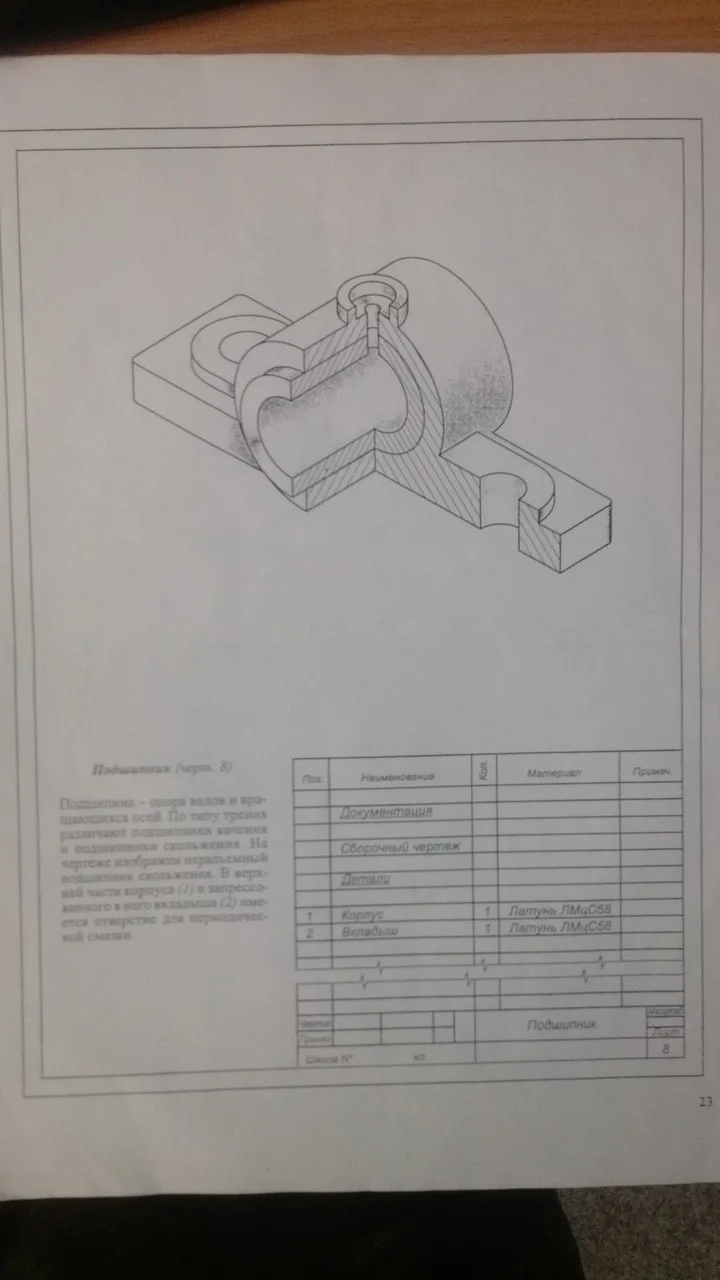

A bearing is a support for shafts and rotating axes. By the type of friction, rolling bearings and plain bearings are distinguished. The drawing shows a non-separable plain bearing. In the upper part of the housing (1) and the insert pressed into it (2) there is a hole for periodic lubrication
