Drawings of single-stage cylindrical gearbox a=200
📂 Drawings
👤 alexey_ktop
Product Description

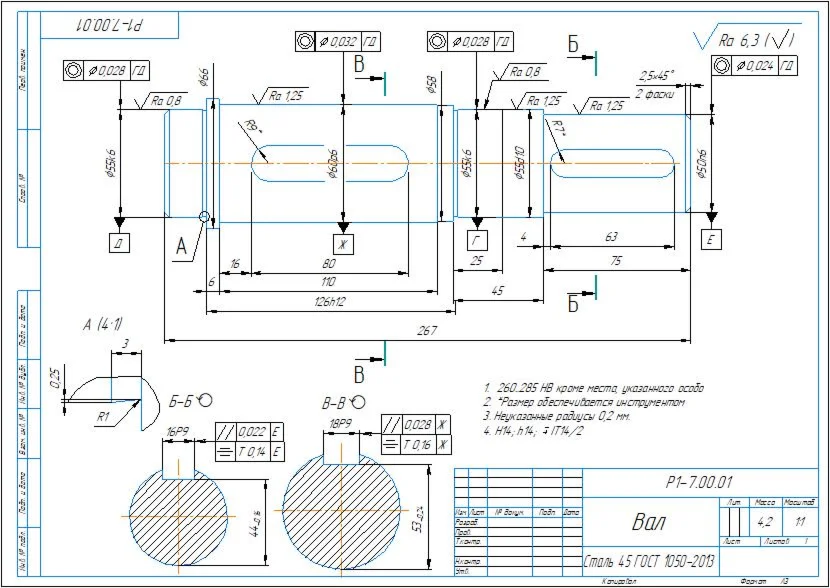

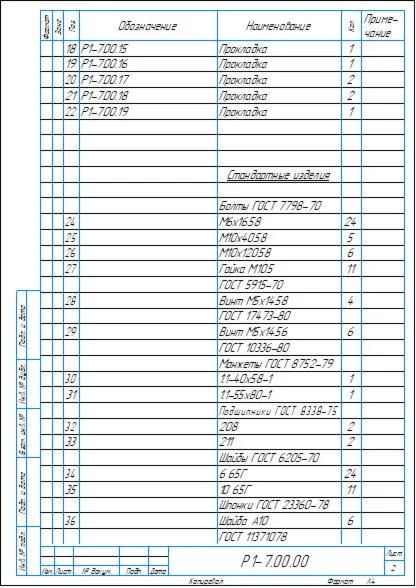

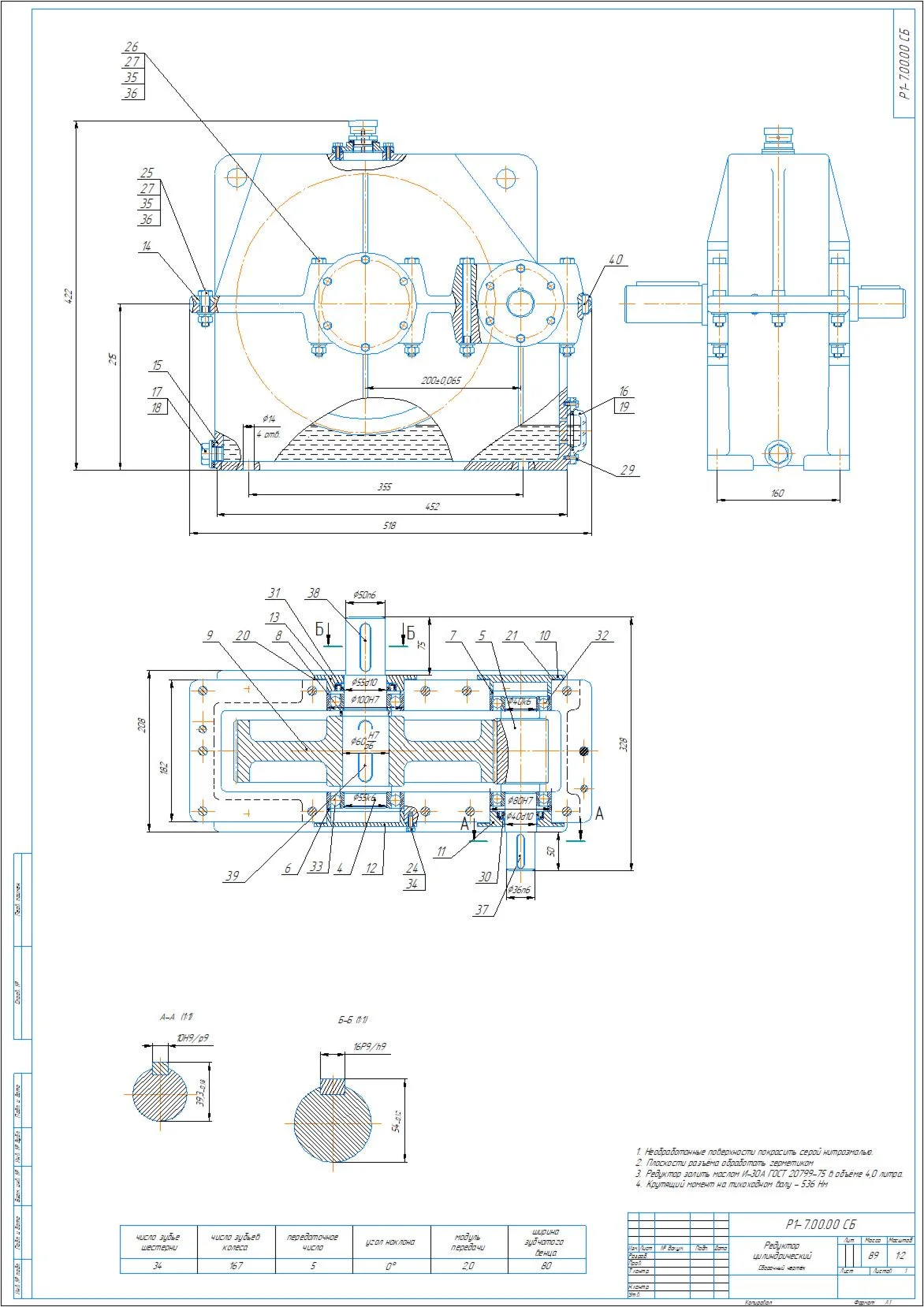

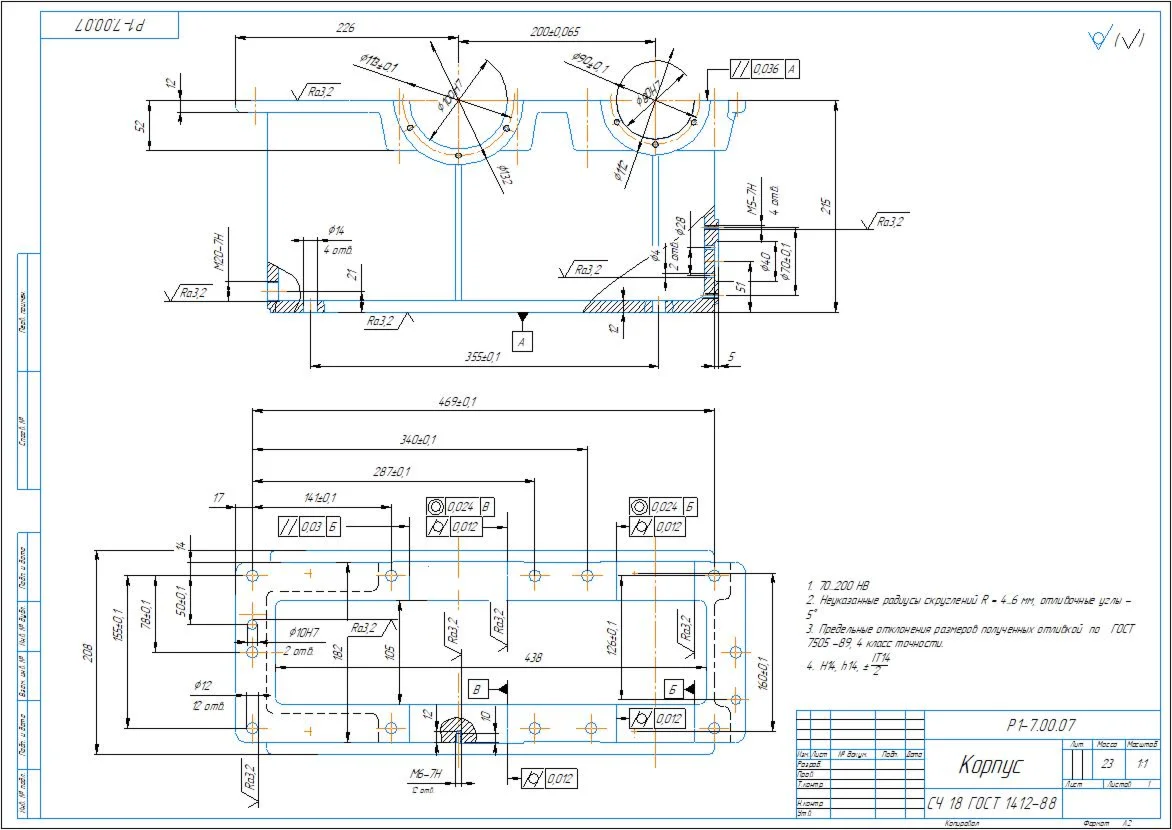

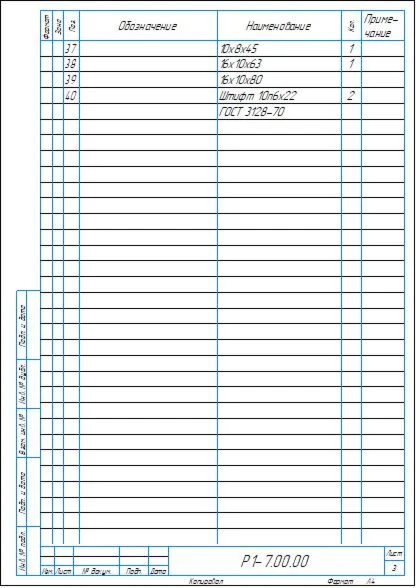

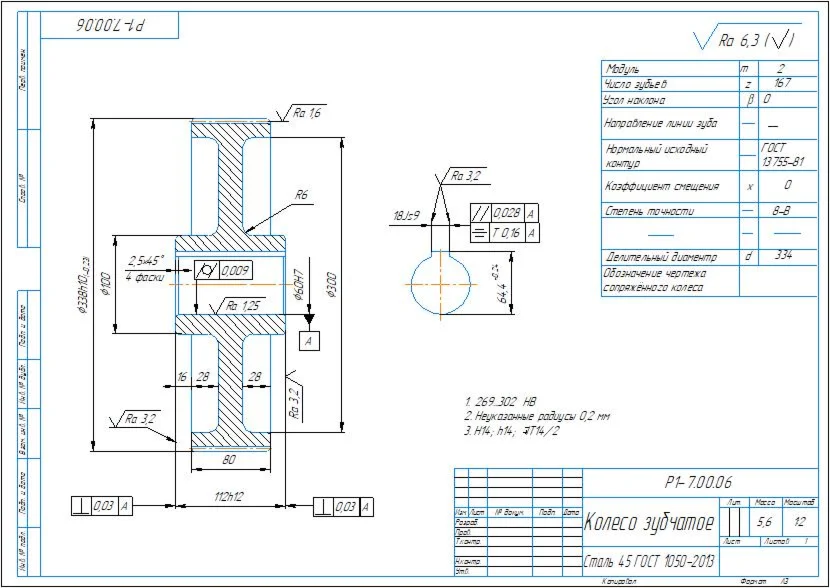

Assembly drawing and specification of a single-stage cylindrical gearbox with the parameters: module m=2 mm, center distance a=200 mm, gear ratio u=5. Also attached are detailed drawings: shaft, gear wheel, gearbox housing. Drawings and specification are made in compass.
No Reviews Yet
Be the first to leave a review for this product!
