Working drawing of the part "Star" z=21; p=19.05
📂 Drawings
👤 alexey_ktop
Product Description

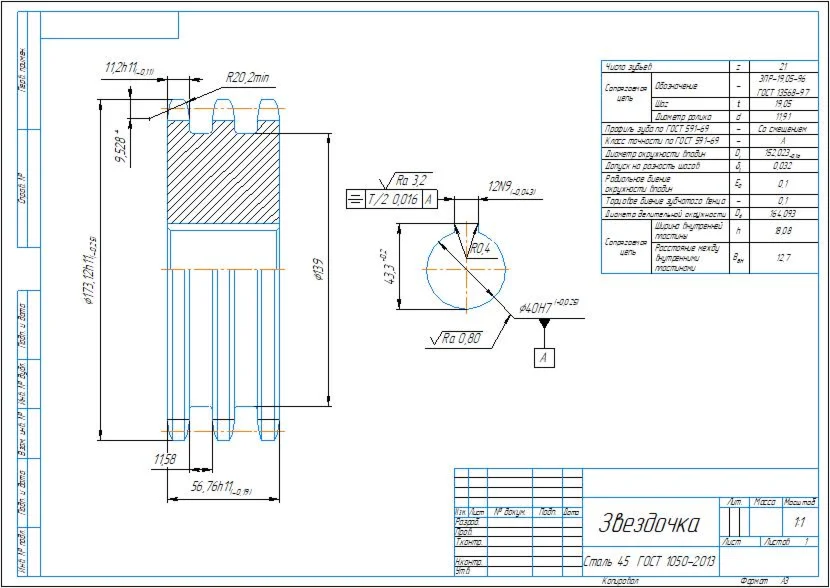

Working drawing of the part three-row drive sprocket with the parameters: number of teeth z=21 pcs.; chain pitch p=19.05 mm. The drawing is made in compass.
