Drawing of the drive sprocket part z=25; p=31.75
📂 Drawings
👤 alexey_ktop
Product Description

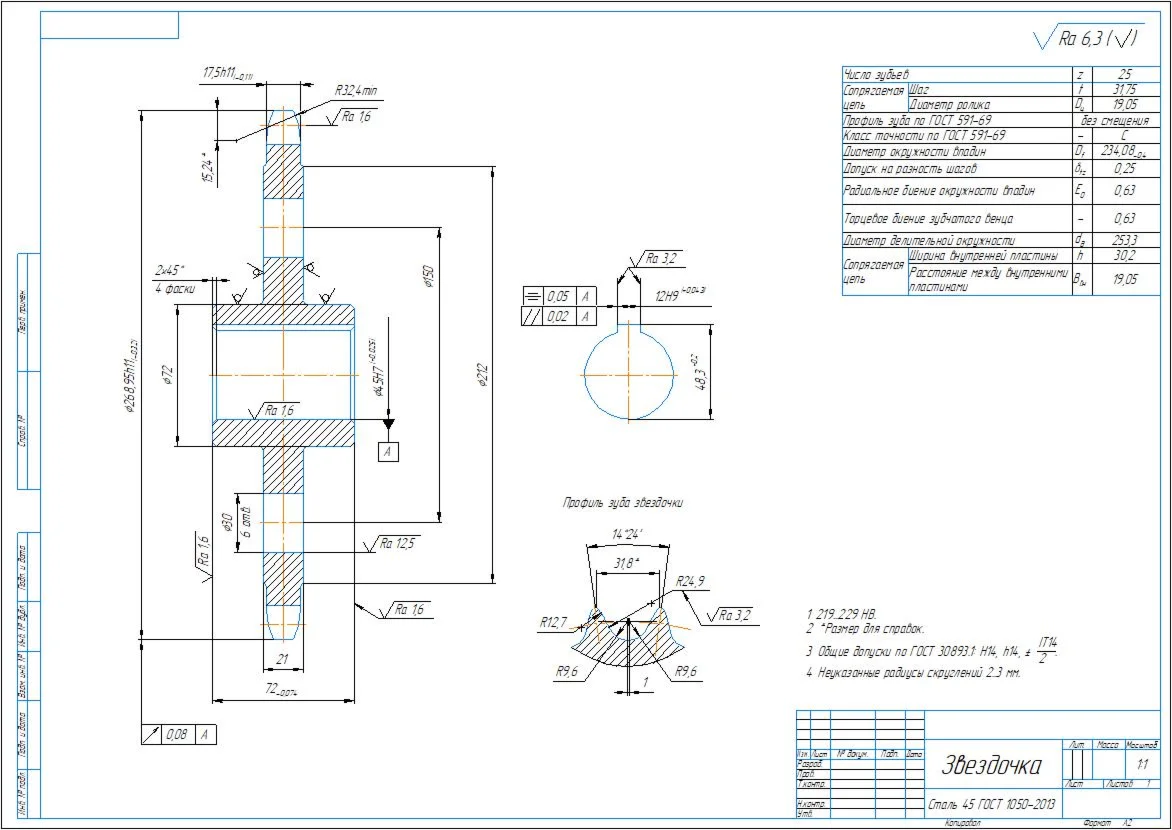

Working drawing of the drive sprocket part with parameters: number of teeth z=25 pcs., chain pitch p=31.75 mm
