This section describes a fire alarm system for a control station that allows:
1. to promptly detect a fire source, generate an alarm signal and transmit it to the administrative and amenity building security room with backup to the dispatcher
2. to turn on the warning system;
3. to turn off ventilation systems.
Probable sources of fire are electrical wiring and faulty electrical equipment.
In accordance with NPB88-2001*, NPB104-03, NPB110-03, the following is provided for in the building:
• IP212-ZSU smoke fire alarms in rooms and corridors (including behind suspended ceilings);
• manual fire alarms with safety signs on evacuation routes;
• sound alarms in the building;
• a light and sound alarm on the building facade;
• "Exit" and "Left Arrow" light boards on evacuation routes.
All loops are connected to the fire alarm control and receiving device (PPKOP) "Signal-20P" No. 19, located in the control room.

File format: dwg, tif (AutoCAD 2010 is not editable)
Note: the original files in *.tif format must be in the same folder with the project file *.dwg

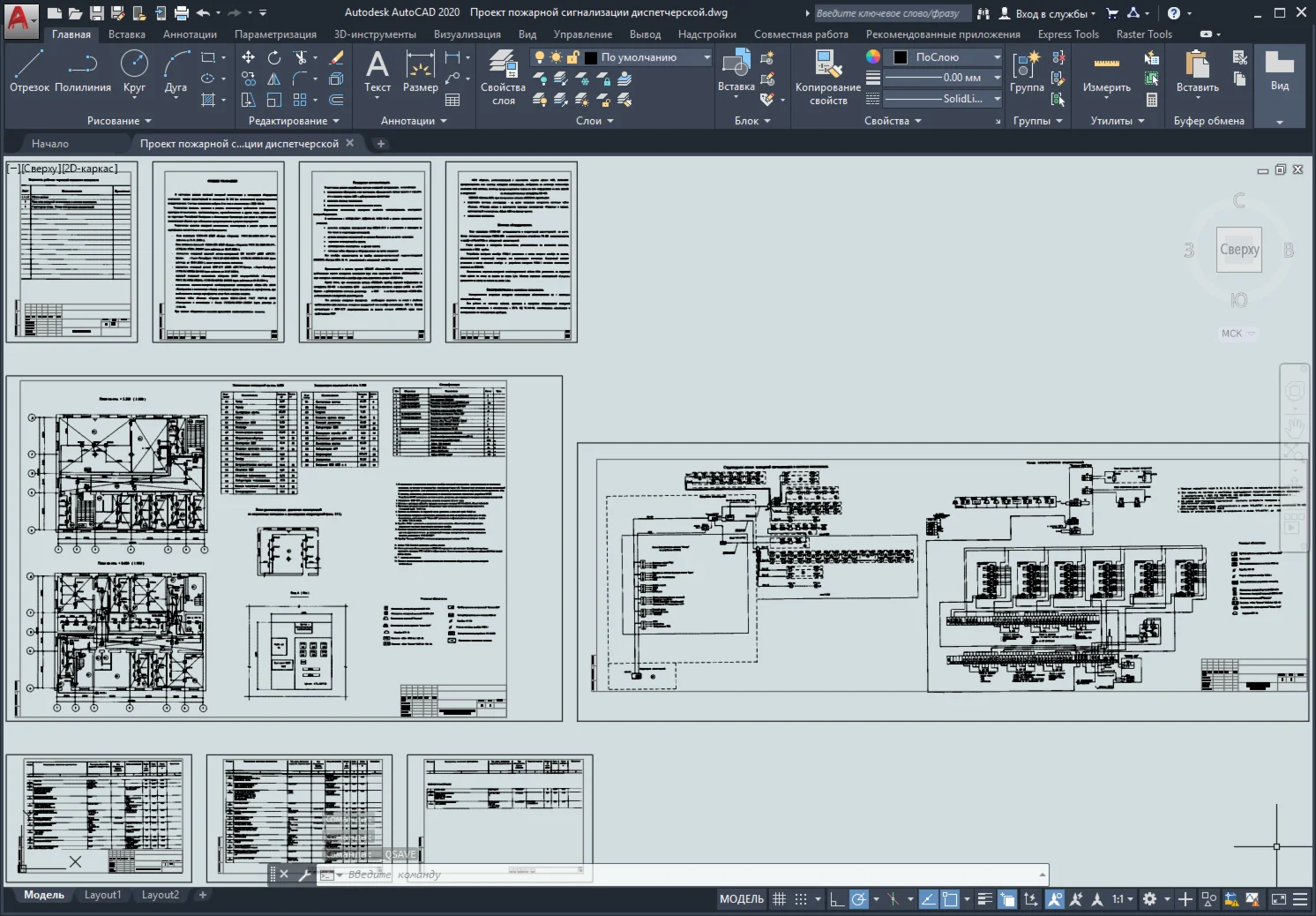

Download the file "Fire alarm control room project" >>>
