Working project of water supply systems of fuel and lubricants warehouse, including:
• Oil pumping station.
• Diesel fuel pumping station.
• Foaming agent warehouse.
Water supply to the fuel and lubricants warehouse pumping station building is provided from the designed water supply network. The water supply inlet is made of steel pipes according to GOST 10704-91. The internal network supplies water to the mixer in the filter regeneration room.
A hot water supply system is also provided in the fuel and lubricants pumping station building, supplying hot water to the process baths in the regeneration room. Hot water supply is provided from the designed external networks, the inlet is laid from the overpass of the heating networks (see the TS section).
Internal cold and hot water supply networks are made of steel water and gas pipes GOST 3262-75*.
Water supply to the foaming agent warehouse is made of steel electric-welded pipes according to GOST 10704-91. The pipes are connected by welding.

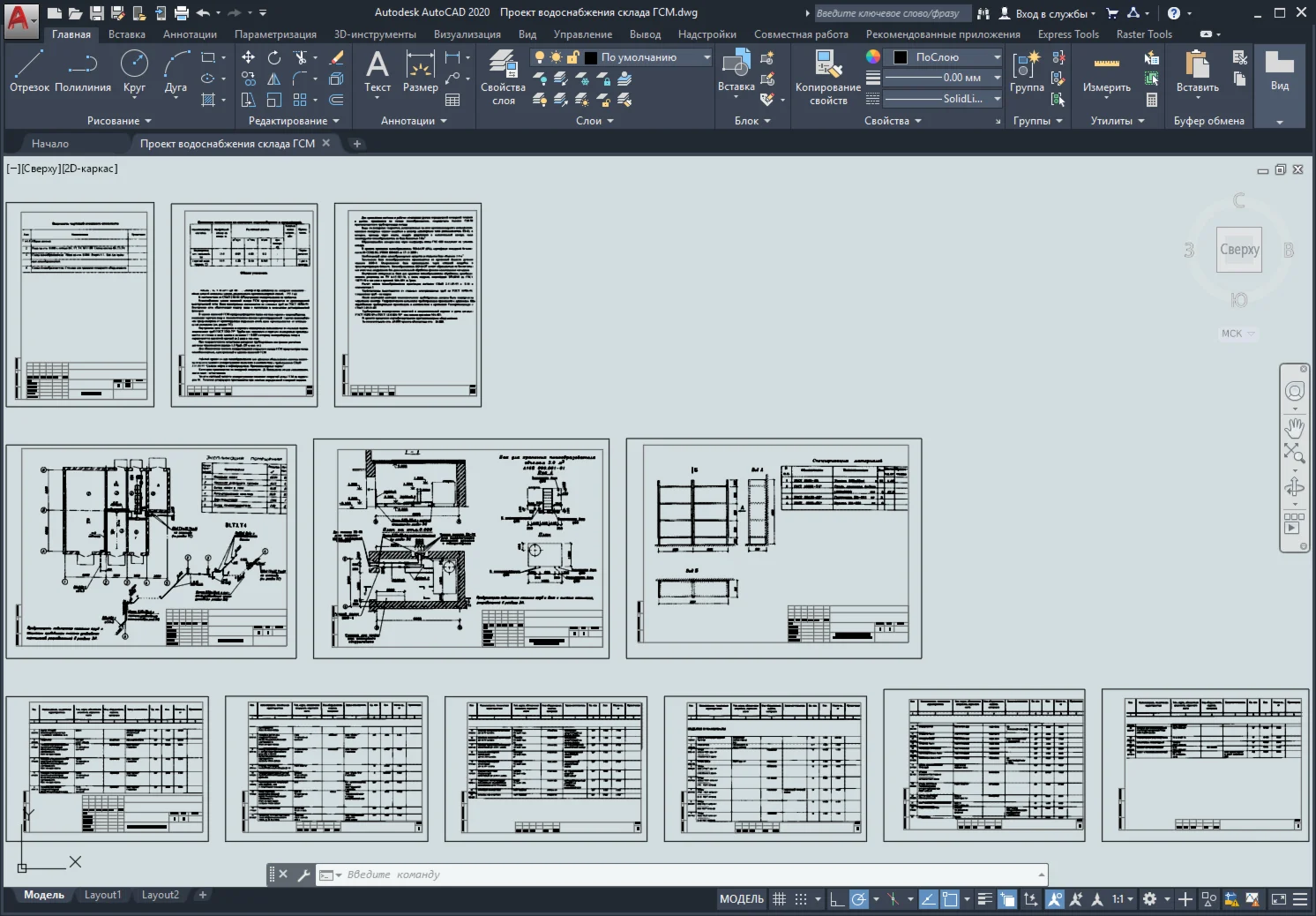

File format: dwg, tif (AutoCAD 2010 not editable)
Note: source files of *.tif format must be in the same folder with the project file *.dwg
