Working design of heating and ventilation systems of the fuel and lubricants warehouse.
Heating of the fuel and lubricants warehouse:
The building is provided with a single-pipe dead-end water heating system with upper distribution.
Air is removed from the heating system through automatic air vents installed at the highest points of the system.
Registers made of smooth pipes are installed in all rooms.
In the rooms of the oil pumping room, diesel fuel pumping room, oil storage in containers and filter regeneration, screens made of / true steel are installed in front of the heating devices.
Ventilation of the fuel and lubricants warehouse:
In the rooms of the oil pumping room and oil storage in containers, natural ventilation is provided through a deflector at a rate of 2 times and mechanical ventilation, switched on by a button located on the outside of the door, 10 minutes before the entry of service personnel.
In the filter regeneration room, constant ventilation is provided at a rate of 3-fold air exchange per hour and natural ventilation through a deflector at a rate of 2 times per hour. The electrical control room is provided with natural exhaust ventilation through a louvered grille. The inflow is unorganized.
In the foaming agent warehouse, natural exhaust ventilation is provided through a deflector in the amount of 1 air exchange per hour.

In the rooms of the oil pumping station, container oil warehouse, filter regeneration and foaming agent warehouse, air inflow is provided through a louvered grille in the lower area of ​​the door.

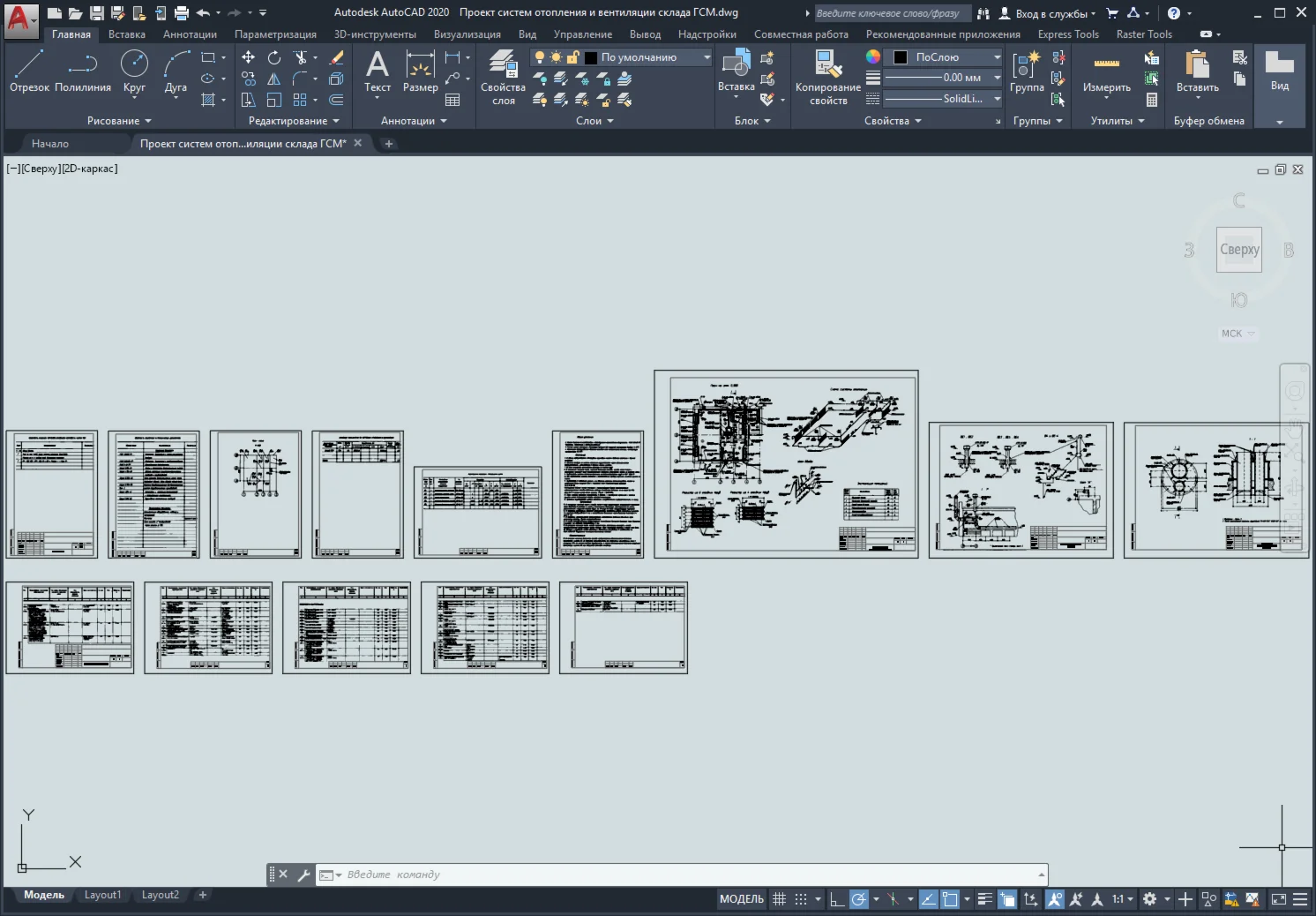

File format: dwg, tif (AutoCAD 2010 is not editable)
Note: the original *.tif files must be in the same folder with the *.dwg project file
