Working project of fuel and lubricants warehouse technology and pumping oils.
The fuel and lubricants warehouse is designed to store two types of oil, as well as diesel fuel and includes:
- tank farm;
- oil pumping station;
- diesel fuel pumping station;
- oil product receiving and dispensing unit;
- oil and fuel pipeline system;
- filter regeneration station;
- oil storage in containers.
The tank farm fire hazard category is Bn according to NPB 107-97; explosion hazard zone class according to PUE - B-1g,
The pumping station premises have the following categories of fire and explosion hazard according to NPB 105-95, explosion hazard and fire hazard zone classes according to PUE: oil pumping station and container oil storage - B1/P-1;
- diesel fuel pumping station - B/V-1a;
- filter regeneration station - VZ/P-1.

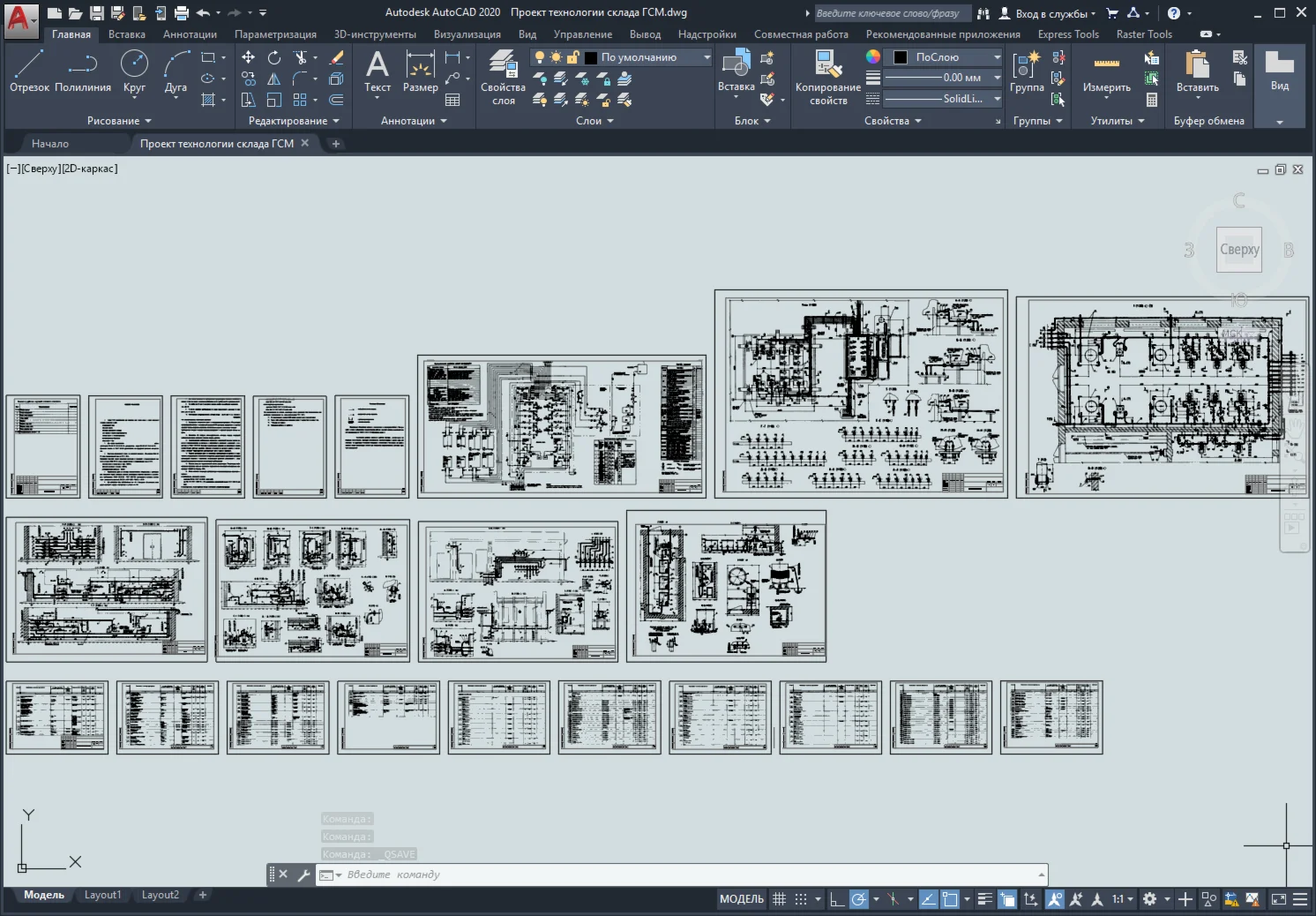

File format: dwg, tif (AutoCAD 2010 not editable)
Note: source files of *.tif format must be in the same folder with the project file *.dwg
